Programmable Thermostat

Short Description:

for floor heating & electric diffuser systems

Model:F06-NE

1. Temperature Control for floor heating with 16A output
Dual temperature compensation eliminates internal heat interference for accurate control
Internal/external sensors with floor temperature limit
2.Flexible Programming & Energy Saving
Pre-programmed 7-day schedules: 4 temp periods/day or 2 on/off cycles/day
Holiday mode for energy saving + low-temp protection
3. Safety & Usability
16A terminals with load separation design
Lockable flip-cover keys; non-volatile memory retains settings
Large LCD display real-time info
Temp override; optional IR remote/RS485


Brief Introduction

Product Tags

Product Features

● Controls electric diffusers & floor heating systems.
● Easy operation, energy-efficient, and comfortable.
● Dual-temperature correction for precise control, eliminating internal heat interference.
● Split design separates thermostat from loads; 16A terminals ensure safe connections.
● Two pre-programmed modes:
● 7-day, 4-period daily temperature scheduling.
● 7-day, 2-period daily on/off control.
● Flip cover-hidden, lockable keys prevent accidental operation.
● Non-volatile memory retains programs during outages.
● Large LCD for clear display and simple operation.
● Internal/external sensors for room temp control and floor temp limits.
● Includes temporary override, holiday mode, and low-temp protection.
● Optional IR remote & RS485 interface.

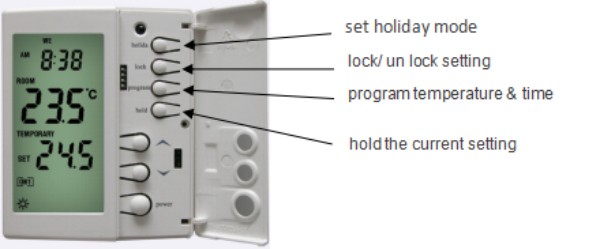

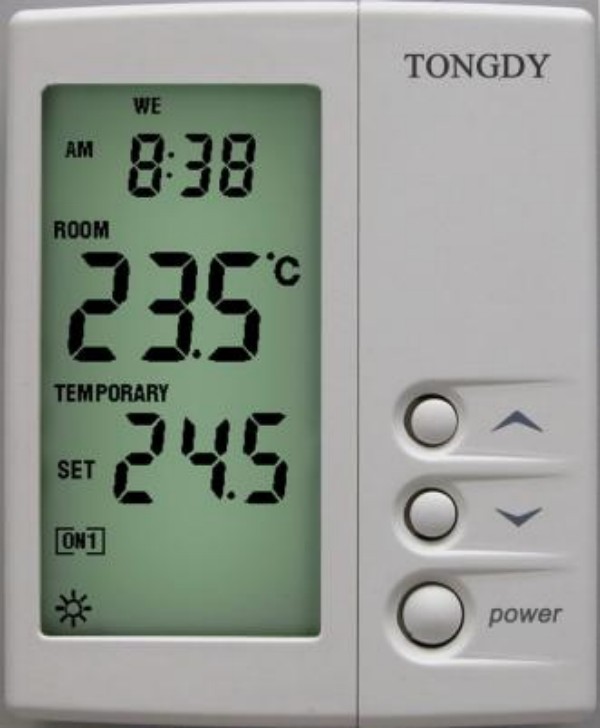

Buttons and LCD Display

frbfg1
frbfg2

Specifications

Power supply 230 VAC/110VAC±10%  50/60HZ
Power consume ≤ 2W
Switching Current Rating resistance load:  16A  230VAC/110VAC
Sensor NTC  5K @25℃
Temperature degree Celsius or Fahrenheit selectable
Temperature control range 5~35℃ (41~95℉) for room temperature

5~90℃ (41~194℉) for floor temperature

Accuracy ±0.5℃ (±1℉)
Programmability Program 7 days/ four time periods with four temperature set points for each day or program 7 days/ two time periods with turning-on/turning-off the thermostat for each day
Keys On the surface: power/ increase/ decrease

Inside: programming/temporary temp./hold temp.

Net weight 370g
Dimensions 110mm(L)×90mm(W)×25mm(H) +28.5mm(back bulge)
Mounting standard Mounting on the wall,  2“×4“ or 65mm×65mm box
Housing PC/ABS plastic material with IP30 protection class
Approval CE
