Temperature and Humidity Sensing with Data Logger and RS485 or WiFi

Short Description:

Model:F2000TSM-TH-R



Temperature and humidity sensor and transmitter, particularly equipped with a data logger and Wi-Fi

It accurately senses indoor temperature and RH, supports Bluetooth data download, and provides a mobile APP for visualization and network setup.

Compatible with RS485 (Modbus RTU) and optional analog outputs (0~~10VDC / 4~~20mA / 0~5VDC).




Brief Introduction

Product Tags

FEATURES

Updated temperature and humidity transmitter with sensing and recording

Data logger with BlueTooth download

WiFi communication

RS485 interface with Modbus RTU

Optional 2x0~10VDC/4~20mA/0~5VDC outputs

Provide APP for display and download data

Six lights with 3-color indicate temperature or humidity three ranges

TECHNICAL SPECIFICATIONS

Temperature Relative Humidity
Sensor

Digital integrated temperature and humidity sensor

Measuring range -20~60℃(-4~140℉) (default) 0 -100%RH
Accuracy ±0.5℃ ±4.0%RH (20%-80%RH)
Stability <0.15℃ per year <0.5%RH per year
Storage environment 0~50℃(32~120℉) / 20~60%RH
Housing/IP Class PC/ABS fireproof material/ IP40
Indicator lights Six lights with 3-color, available or disable
Communication

RS485 (Modbus RTU)

WIFI @2.4 GHz 802.11b/g/n (MQTT)

Any one or both of them

Data logger Up to 145860 points are stored with the storage rate during60 sec. to 24
hours.

For example it can be stored 124 days in 5min. rate or 748 days in 30min.rate.

Analog Output 0~10VDC(default) or 4~20mA (selectable by jumpers)



Power supply 24VAC/VDC±10%
Net weight /Dimensions

180g,   (W)100mm×(H)80mm×(D)28mm

Installation standard 65mm×65mm or 2”×4”wire box
Approval CE-Approval

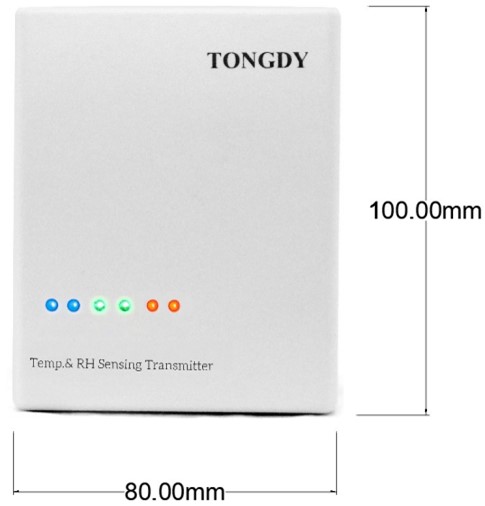

Mounting and Dimensions

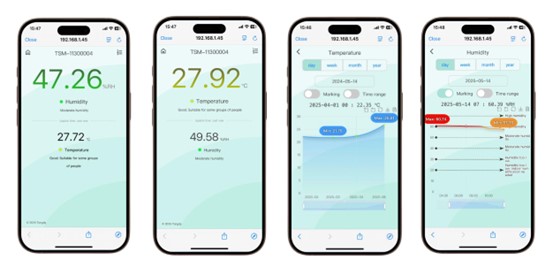

Display On APP
