• Real time carbon dioxide detection and monitoring

• Temperature and humidity detection and display

• Three-color backlight LCD

• Optional display 24h average CO2 and max. CO2

• Provide optional 1x on/off output to control a ventilator

• Provide optional Modbus RS485 communication

• Wall mounting or desktop placement

• High quality, excellent performance

• CE-approval

Features

♦ Real time monitoring room carbon dioxide

♦ NDIR infrared CO2 sensor inside with special Self Calibration. It makes the CO2 measurement more accurate and more reliable.

♦ More than 10 years lifetime of CO2 sensor

♦ Temperature and humidity monitoring

♦ Three-color (Green/Yellow/ Red) LCD backlight indicates ventilation level -optimal/moderate/poor based on the CO2 measurements

♦ Buzzer alarm available/disable selected

♦ Optional display 24h average and max. CO2

♦ Provide optional 1xrelay output to control a ventilator

♦ Provide optional Modbus RS485 communication

♦ Touch button for easy operation

♦ 24VAC/VDC or 100~240V or USB 5V power supply

♦ wall mounting or desktop placement available

♦ High quality with the excellent performance, best choice for schools and offices

♦ CE-approval

Applications

G01-CO2 monitor is used to monitor indoor CO2 concentration as well as temperature and humidity. It’s installed on the wall or on the desktop

♦ Schools, offices, hotels, meeting rooms

♦ Shops, restaurants, hospitals, theaters

♦ Air ports, train stations, other public places

♦ Apartments, houses

♦ All ventilation systems

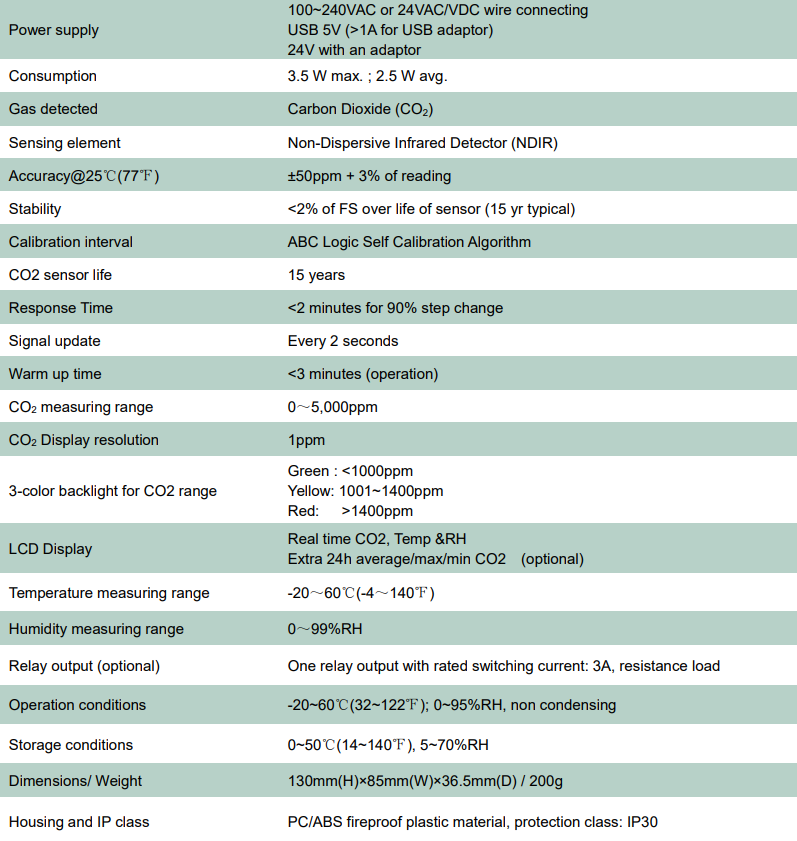

Specifications

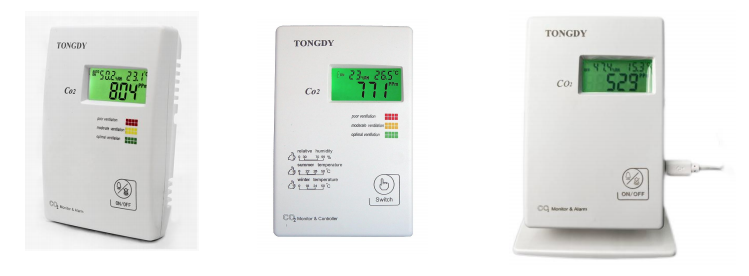

Pictures

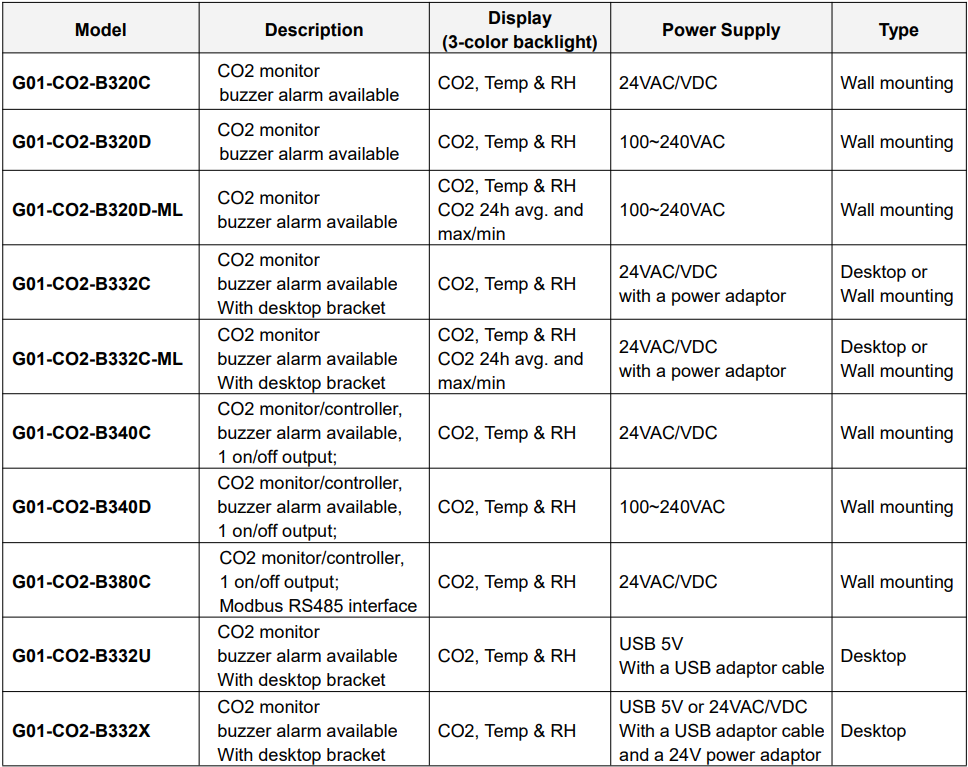

Models Guide

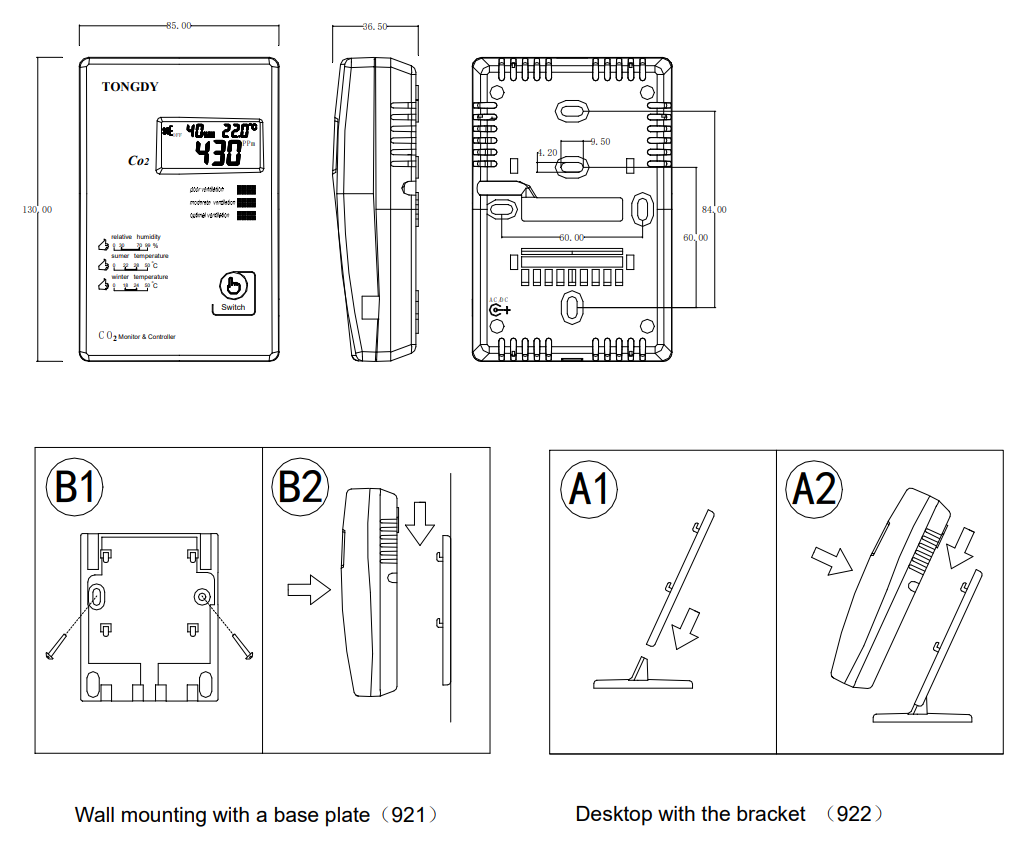

Mounting and Dimensions

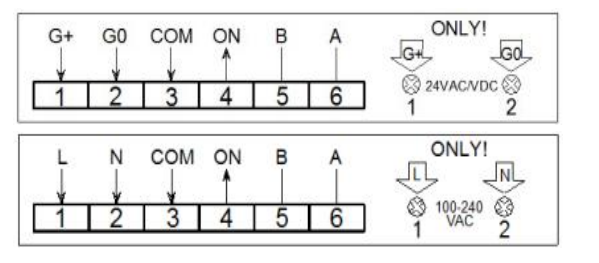

Wiring Diagram
