Dew-Proof Thermostat

Short Description:

for floor cooling-heating radiant AC systems

Model: F06-DP

Dew-Proof Thermostat

for floor cooling – heating radiant AC systems
Dew-Proof Control
The dew point is calculated from real-time temperature and humidity to adjust water valves and prevent floor condensation.
Comfort & Energy Efficiency
Cooling with dehumidification for optimal humidity and comfort; heating with overheat protection for safety and consistent warmth; stable temperature control via precision regulation.
Energy-saving presets with customizable temperature/humidity differentials.
User-Friendly Interface
Flip cover with lockable keys; backlit LCD shows real-time room/floor temp, humidity, dew point, and valve status
Smart Control & Flexibility
Dual cooling modes: room temperature-humidity or floor temperature-humidity prioritization
Optional IR remote operation and RS485 communication
Safety Redundancy
External floor sensor + overheating protection
Pressure signal input for precise valve control


Brief Introduction

Product Tags

FEATURES

● Designed for floor hydronic radiant cooling/heating AC systems with floor dew - proof control.
● Enhances comfort and saves energy.
● Flip - cover with lockable, built - in programming keys prevent accidental operation.
● Large, white backlit LCD displays room/set temp/humidity, dew point, valve status.
● Floor temp limit in heating mode; external sensor for floor temp.
● Auto - calculates dew point in cooling systems; user - preset room/floor temp & humidity.
● Heating mode: humidity control and floor overheat protection.
● 2 or 3 on/off outputs for water valve/humidifier/dehumidifier.
● 2 cooling control modes: room temp/humidity or floor temp/room humidity.
● Pre - set temp/humidity differentials for optimal system control.
● Pressure signal input for water valve control.
● Selectable humidify/dehumidify modes.
● Power - failure memory for all pre - set settings.
● Optional infrared remote control and RS485 communication interface.

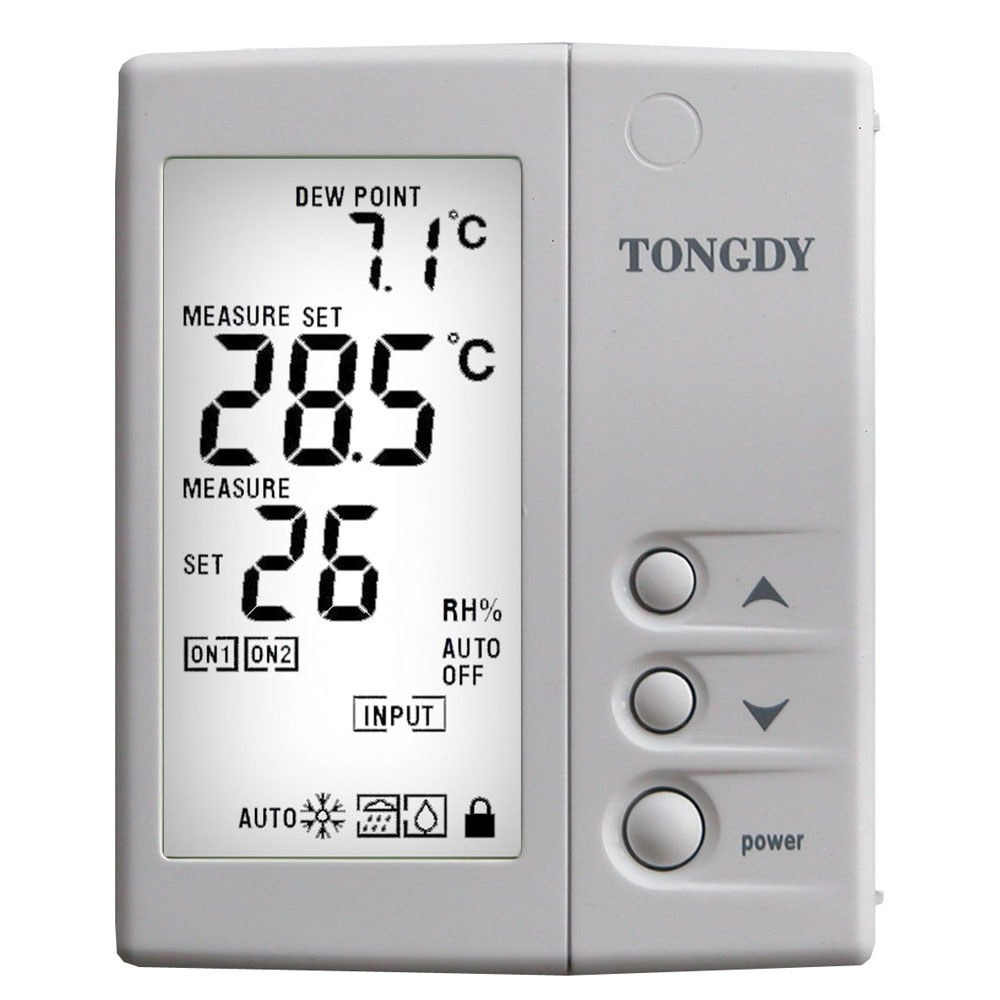

80aaef4c-dc61-475a-9b4a-d9d0dbe61214

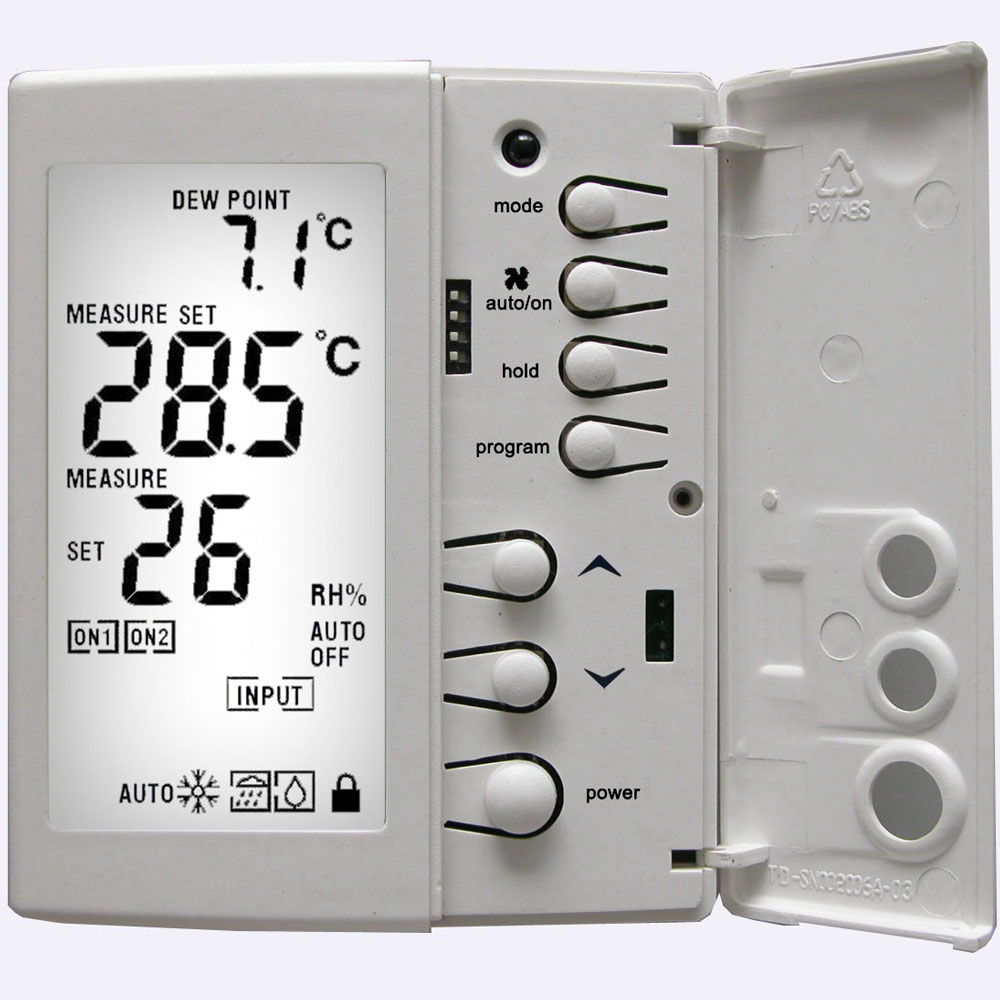

ecf70c73-ec49-49d1-a81a-39a4cf561bcf



←cooling/heating

←humidify/dehumidify switchmode

←humidify/dehumidify switch modemode

←control mode switchmode

Specifications

Power Supply 24VAC  50Hz/60Hz
Electrical rating 1 amp rated switch current/per terminal
Sensor Temperature: NTC sensor ; Humidity: Capacitance sensor
Temperature measuring range 0~90℃ (32℉~194℉)
Temperature setting range 5~45℃ (41℉~113℉)
Temperature accuracy ±0.5℃(±1℉) @25℃
Humidity measuring range 5~95%RH
Humidity setting range 5~95%RH
Humidity accuracy ±3%RH @25℃
Display White backlit LCD
Net weight 300g
Dimensions 90mm×110mm×25mm
Mounting standard Mounting on the wall, 2“×4“or 65mm×65mm wire box
Housing PC/ABS plastic fireproof material
