Core Gas Detection & Control Solutions
Explore our flagship commercial-grade gas monitors and environmental controllers engineered specifically for modern HVAC integration and intelligent Building Management Systems (BMS).
Advanced Co And Ozone Monitors And Controllers For Commercial Building Control
In modern commercial architecture and smart facility management, maintaining optimal indoor air quality (IAQ) while driving peak energy efficiency represents a critical operational mandate. Among the wide spectrum of indoor airborne pollutants, Carbon Monoxide (CO) and Ozone (O3) demand localized, highly accurate monitoring and automated control due to their severe physiological impacts, acute hazard profiles, and regulatory compliance imperatives.
The Commercial Building Control Imperative
Commercial structures—ranging from multi-story corporate towers, shopping complexes, and educational institutions to underground parking facilities and high-density transportation hubs—are dynamic eco-systems. The evolution of smart building design necessitates the transformation of ventilation systems from static, time-scheduled operations into responsive, data-driven micro-climate networks.
Integrating high-precision Co And Ozone Monitors And Controllers For Commercial Building Control directly into modern Building Automation Systems (BAS) via industrial communication protocols (such as BACnet MS/TP, Modbus RTU, or wireless IoT frameworks) allows facility engineers to safeguard human health, minimize energy consumption from unnecessary ventilation, and earn prestigious green building accreditations like LEED v4.1 and WELL Building Standard v2.
Standards Compliance Framework
- ✔ ASHRAE 62.1 & 62.2: Ventilation for Acceptable IAQ
- ✔ WELL Building Standard v2: Air Feature A01, A03, and A05
- ✔ OSHA / NIOSH: Workplace Exposure Limits for CO and O3
- ✔ LEED v4.1: Enhanced Indoor Environmental Quality Credit
Technical Deep Dive: Carbon Monoxide (CO) Monitoring & Demand-Controlled Ventilation
Carbon Monoxide is a colorless, odorless, and highly toxic gas generated by incomplete combustion. In commercial settings, primary CO sources include vehicular emissions in enclosed or semi-enclosed parking garages, loading docks, boiler rooms, gas-fired HVAC units, and emergency power generator rooms.
Electrochemical Sensing Technology
Utilizes long-life, highly selective electrochemical cell modules designed to detect trace amounts of CO (0–100 ppm or 0–500 ppm range) with minimal cross-sensitivity to other gases, ensuring zero false alarms in heavy vehicle traffic environments.
Demand-Controlled Ventilation (DCV)
Rather than running heavy exhaust fans continuously at 100% capacity, CO controllers dynamically throttle fan speeds via Variable Frequency Drives (VFDs), achieving energy cost reductions up to 60-80% while keeping CO under toxic thresholds.
Multi-Threshold Relays & Alarms
Integrated multi-stage relay outputs allow automated staging: Stage 1 (e.g., 25 ppm) activates low-speed exhaust fans; Stage 2 (e.g., 50 ppm) escalates fans to high speed; Stage 3 (e.g., 100 ppm) triggers visual and audible warning beacons.
Engineering Rule of Thumb: Continuous monitoring of CO in commercial enclosed garages is required by international building codes (e.g., IMC Section 404). Installing intelligent CO controllers ensures compliance while significantly shortening payback periods on building HVAC electrical draw.
Technical Deep Dive: Ozone (O3) Monitoring, Disinfection & Safety Control
Ozone is a powerful oxidizing agent widely utilized in modern commercial facilities for air purification, odor destruction, water sterilization, mold remediation, and indoor surface sanitation. However, ground-level exposure to high ozone concentrations causes severe respiratory inflammation, asthma exacerbation, and irreversible lung damage.
Dual Applications of Ozone Control
Commercial ozone building control operates in two distinct modes:
1. Active Ozone Injection & Disinfection Control: During off-peak hours or inside specialized HVAC air ducts, ozone generators release controlled concentrations of O3 to sanitize central air systems, eliminate volatile organic compounds (VOCs), and destroy pathogens. Ozone split controllers regulate these generators to ensure effective neutralization, then verify complete gas decay before occupancy resumes.
2. Leak Detection & Environmental Safety Interlock: In facilities utilizing ozone water purification systems (e.g., commercial pools, laundries, food processing areas, copy printing plants), ambient ozone monitors act as emergency safety cut-offs. If ambient ozone exceeds 0.05 ppm to 0.1 ppm, the system immediately shuts down ozone generation and ramps up fresh air intake.
| Parameter | CO Monitoring Standard | Ozone (O3) Monitoring Standard |
|---|---|---|
| Typical Measurement Range | 0 – 100 ppm / 0 – 500 ppm | 0 – 1.00 ppm / 0 – 5.00 ppm |
| Primary Sensor Type | Electrochemical / Semiconductor | Electrochemical / UV Photometric |
| OSHA Exposure Limit (PEL) | 50 ppm (8-hour TWA) | 0.1 ppm (8-hour TWA) |
| Target Applications | Garages, Boilers, Generators | Duct Disinfection, Water Treatment |
| Output Protocols | Modbus RTU, BACnet, 4-20mA | Modbus RTU, Relays, 0-10VDC |
In-Depth Commercial Application Scenarios
Understanding the deployment environment is critical for optimal sensor placement, wiring topology, and system integration. Here is a breakdown of how Co And Ozone Monitors And Controllers For Commercial Building Control operate across key commercial verticals:
1. Commercial Multi-Level Parking Structures
Enclosed underground garages accumulate hazardous levels of carbon monoxide during rush-hour traffic. Installing wall-mounted CO monitors connected via a daisy-chained RS-485 Modbus network allows zonal control of massive extraction fans, preventing toxic gas accumulation while drastically lowering peak electricity demand charges.
2. Commercial Kitchens & Food Service Operations
Commercial kitchens use high-capacity gas cooking appliances and ozone-based grease recovery/exhaust hood treatment systems. CO controllers alert staff to flue gas back-drafting or improper combustion, while ozone monitors ensure exhaust purification systems do not vent unsafe O3 concentrations into surrounding retail spaces.
3. High-Rise Office Buildings & Mixed-Use Complexes
In modern high-density workplaces, multi-sensor IAQ monitors measure CO2, CO, total VOCs, PM2.5, temperature, and humidity simultaneously. Connected to central air handlers (AHUs), these controllers maintain pristine indoor air quality, boosting occupant cognitive function and productivity.
Tongdy Sensing Technology Corporation
Helping You Build and Maintain a Healthy Indoor Environment
Our work makes a difference in helping you create healthy indoor air quality. As one of the earliest companies in China engaged in air quality monitoring products, Tongdy has always focused its strong technology development and design capabilities on indoor air quality monitors and advanced environmental controllers.
With over 15 to 20+ years of dedicated expertise in IAQ & HVAC Solutions, Tongdy is trusted worldwide for high-quality products, professional engineering support, and full compliance with international Green Building standards.
About Tongdy & Our Core Purpose
We foster continuous research and development on obtaining real, accurate air quality data, helping facility managers, building owners, and system integrators well understand and improve the air people breathe through quantitative assessment and precise data analysis.
For pursuing our ultimate purpose of creating healthy indoor air quality, we are committed to obtaining real and accurate data and cultivating the next generation of innovators in technology and sensor engineering.
20+ Years Expertise
Over two decades of mastery in IAQ & HVAC Solutions. Trusted by global clients for high-quality, continuous-duty sensors fully compliant with Green Building standards.
100+ Products
Over 100 commercial-grade monitors and controllers, including CO2, CO, Ozone, single-gas, and multi-sensor solutions for HVAC, BMS, and smart buildings.
Reliable & Accurate Data
Providing smart building managers with actionable, real-time data to make informed automated decisions, reduce energy overhead, and ensure safety.
Tailored Solutions
Flexible hardware architectures, custom firmware capabilities, fast delivery, and deep engineering expertise enable cost-effective gas detection customization.
Social Responsibility & Environmental Stewardship
Tongdy actively develops air quality monitors and is devoted to healthy indoor air quality, striving to become an excellent enterprise model. As a corporate citizen, Tongdy has contributed to public welfare undertakings such as cooperating with public benefit corporations, like WELL—the world’s leading organization focused on deploying people-first places to advance a global culture of health, especially exploring the impact of indoor air quality to people’s health based on The WELL Building Standard™.
Our Technological Values & Competitive Edge
Exclusive Innovative Calibration Algorithm
Proprietary technology providing effective auto-calibration methods to support higher data accuracy across volatile ambient temperatures and varying humidity conditions in diverse commercial spaces.
Unique Professional Multi-Sensor Module
Special multi-sensor modular design featuring a sealed cast aluminum structure containing up to six gas and particle sensors inside, facilitating swift field replacements without rewiring.
Continuous R&D Investment & QA Control
Tongdy-owned manufacturing and significant annual reinvestment into R&D guarantee long-term product reliability, strict quality control standards, and pioneering sensor innovation.
Real-Time Data Monitoring & Analytical Optimization
The proprietary "MyTongdy" Cloud Platform enables facility engineering teams to read, trend, and analyze real-time and historical air quality data on PC dashboards or mobile APPs, accelerating data-driven HVAC optimization.
The Industry Expert in Indoor Air Quality Data
With over 15 years of focused empirical experience in indoor air quality parameters, Tongdy delivers commercial-grade accuracy that empowers facility managers to execute health-centered, energy-efficient operational decisions.
Certificates and Honors
Tongdy products meet stringent international standards, holding CE certifications, ISO quality credentials, and validation for green building integration globally.

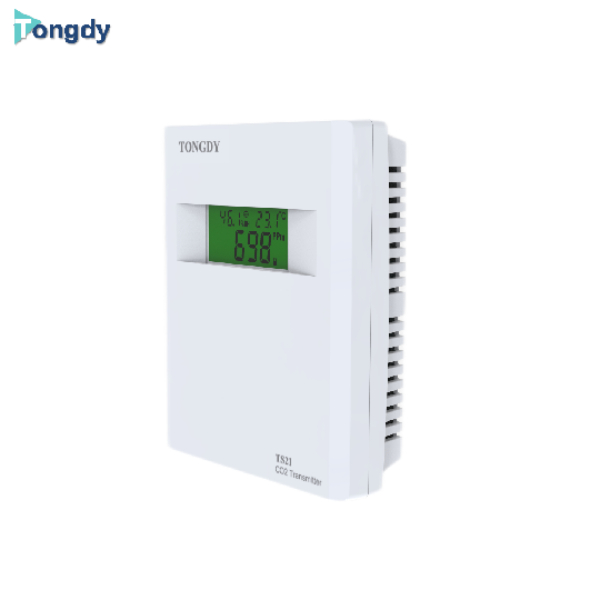

Commercial Gas Monitors & Controllers Catalog
Browse our complete series of industrial and commercial grade gas monitors, CO/CO2 transmitters, and split-type ozone controllers optimized for modern HVAC automation and smart building control.
